STEMlab 125-14 Z7020 Low Noise Starter Kit
STEMlab 125-14Z7020 Low Noise high-performance digitizer board is equipped with additional linear analog power for analog power supplies to reduce RF output noise and consequently increase ENOB.
Comes with Xilinx Zynq 7020 SoC.
Based on STEMlab 125-14, which is our most versatile and popular product, was introduced to the market in 2013 when Red Pitaya was established. Since then it has been used in a wide variety of contexts, from hobbyists and ham radio operators to industry, research, and space applications.
Description
STEMlab 125-14 is our most versatile and popular product, which was introduced to the market in 2013 when Red Pitaya was established. Since then it has been used in wide variety of contexts, from hobbyists and ham radio operators to industry, research and space applications.
Comes with AMD Xilinx Zynq 7020 SoC.

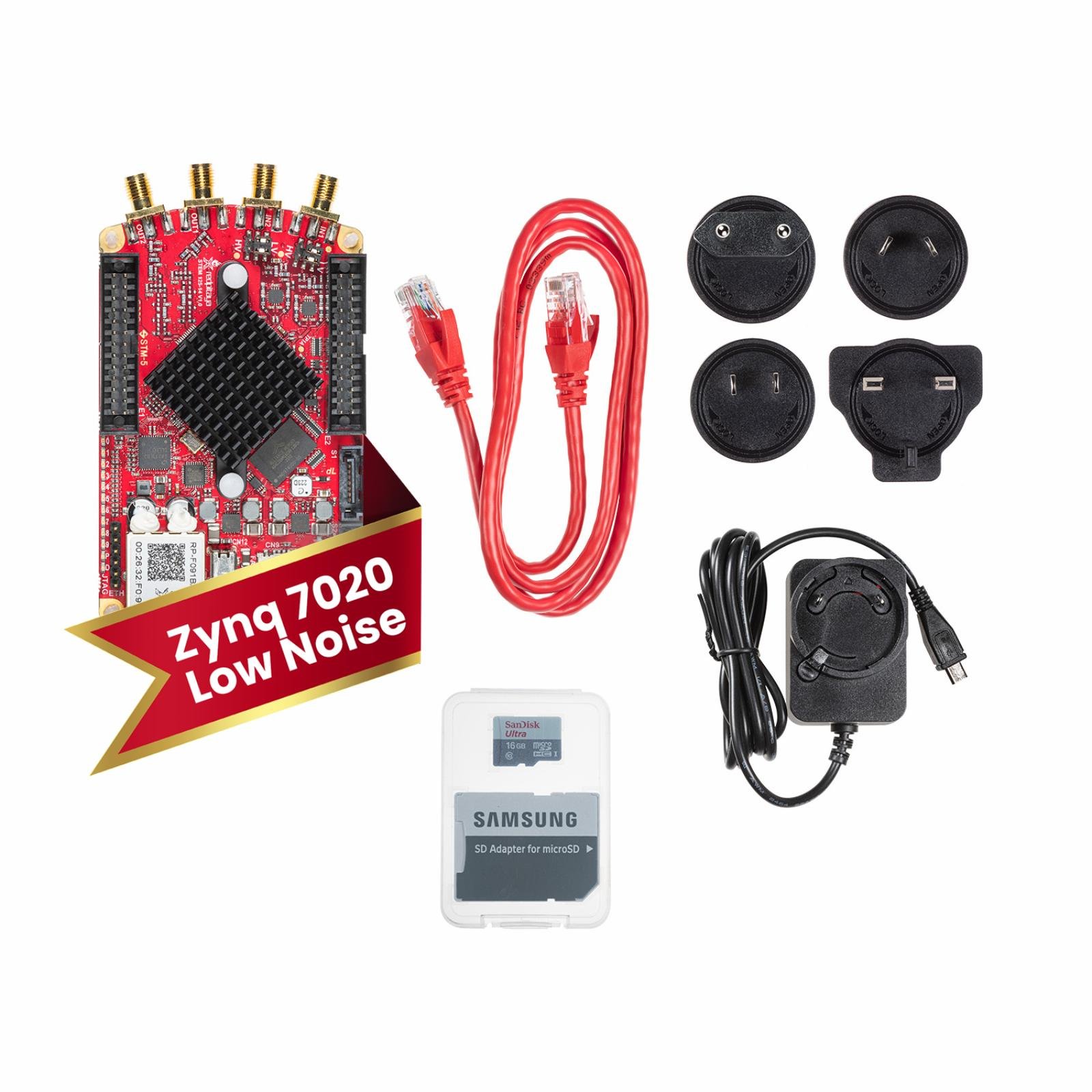

What is in the box
– Red Pitaya STEMlab 125-14-Z7020 digitizer board
– SD card (16GB, class 10)
– Ethernet cable (1m)
– Power supply (5V, 2A)
Reviews (0)
Shipping & Delivery
Related products
STEMlab 125-14 4-Input Starter Kit
STEMlab 125-14 4 Inputs digitizer board is based on STEMlab 125-14 unit, which offers 4 Input channels with improved performance, instead of 2 inputs and 2 output channels. Additionally, it comes equipped with Xilinx Zynq 7020 SoC.
What is in the box
– Red Pitaya STEMlab 125-14 4-Inputs digitizer board
– SD card (16GB, class 10)
– Ethernet cable (1m)
– Power supply (5V, 2A)
STEMlab 125-14 Calibrated Kit
STEMlab 125-14 is our most versatile and practical digitizer, introduced to the market in 2013 when Red Pitaya was established. Since then it has been used in a wide variety of contexts, from hobbyists and ham radio operators to industry, research, and space applications.
What is in the box
– Red Pitaya STEMlab 125-14 digitizer board
– SD card (16GB, class 10)
– Ethernet cable (1m)
– Power supply (5V, 2A)
– Aluminium case
– Logic analyzer extension module
– 2x oscilloscope probes
– 2x SMA to BNC adapter
– 2x 50-ohm termination
– 2x SMA T adapter
– WiFi dongle
STEMlab 125-14 Edu Pack
One board, countless teaching applications!
Meet the Red Pitaya’s STEMlab 125-14 Edu Pack: a must-have for educators who want more for less. This open-source platform doubles as an oscilloscope, spectrum analyzer, bode analyzer, LCR meter, and more. With solid performance powered by a 14-bit 125Msps ADC and DAC & AMD Xilinx Zynq 7010 FPGA, it’s a reliable tool for various courses. Plus, access our teaching library filled with step-by-step examples and video tutorials to maximize its potential.
For a 10% academic discount, send us an email at sales@redpitaya.com.

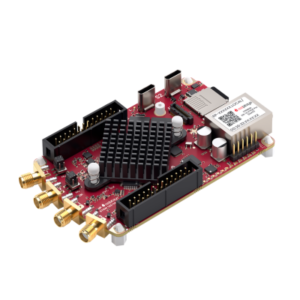

STEMlab 125-14 Gen 2
