Red Pitaya Click Shield

Logic Analyzer Extension Module

What is in the box:

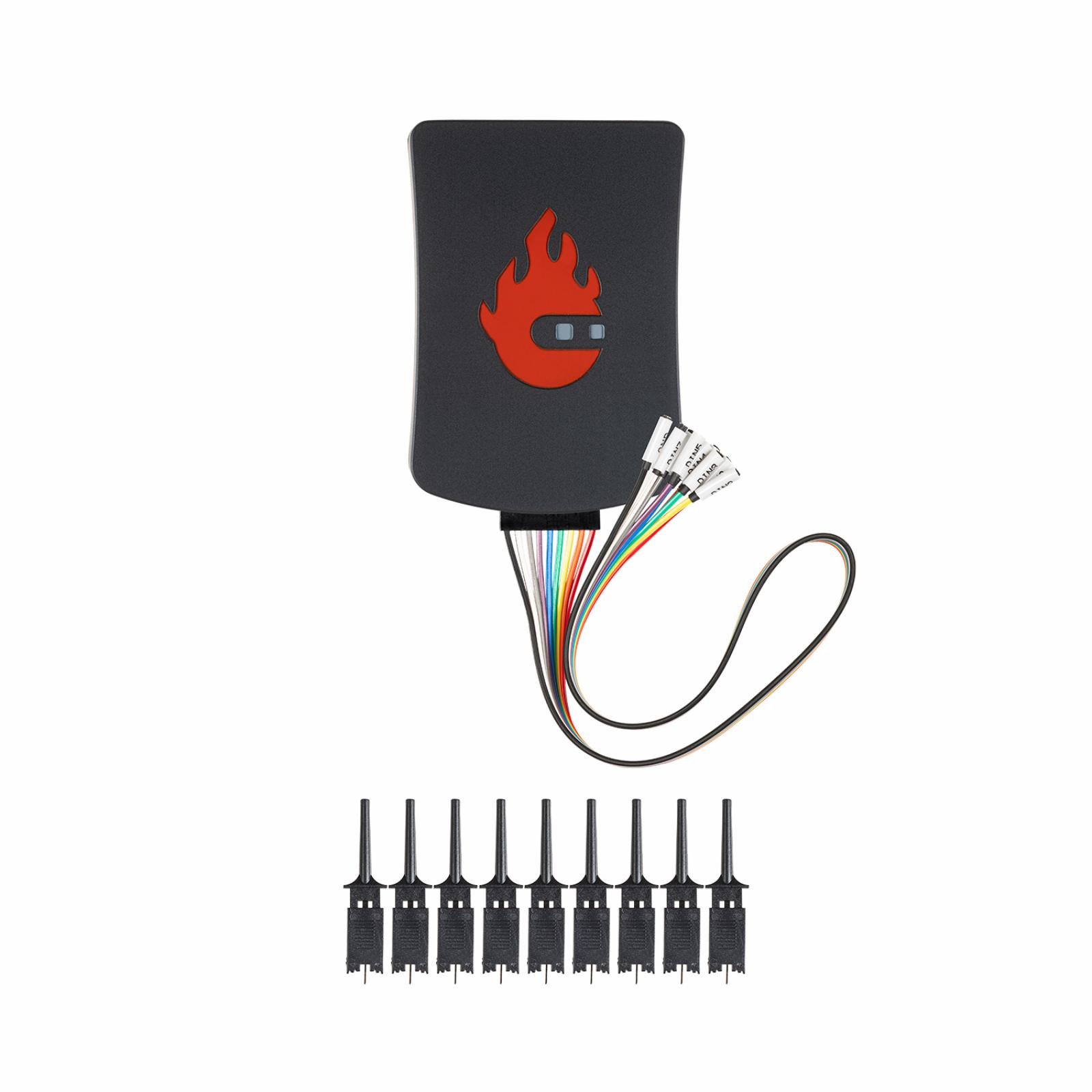

– Logic Analyzer board integrated into an aluminum case
– 8ch Logic Analyzer Probes with cable

This is an additional plug-in module! Please note that a STEMlab 125-10/14 main unit is needed for normal operation!

Compare
Add to wishlist
Category:
Description

The Logic Analyzer application enables the representation of the binary states of digital signals. The Logic Analyzer can both deal with purely binary signals, such as GPIO outputs of the Raspberry Pi or Arduino board, as well as analyze different bus (I2C, SPI, and UART) and decode the transmitted data. All Red Pitaya applications are web-based and do not require the installation of any native software. Users can access them via a web browser using their smartphone, tablet or a PC running any popular operating system (MAC, Linux, Windows, Android, and iOS).



Compatibility:

– STEMlab 125-10, STEMlab 125-14 or SDRlab122-16 board

Additional information
Weight

0,5 kg
Dimensions

12,2 × 9,5 × 4,4 cm
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Logic Analyzer Extension Module”
