Heatsink Interface
Introducing Heatsink Interface for Red Pitaya
Although so far no Red Pitaya boards were killed by heat stroke, some of our customers feel it’s better to be on the safe side.

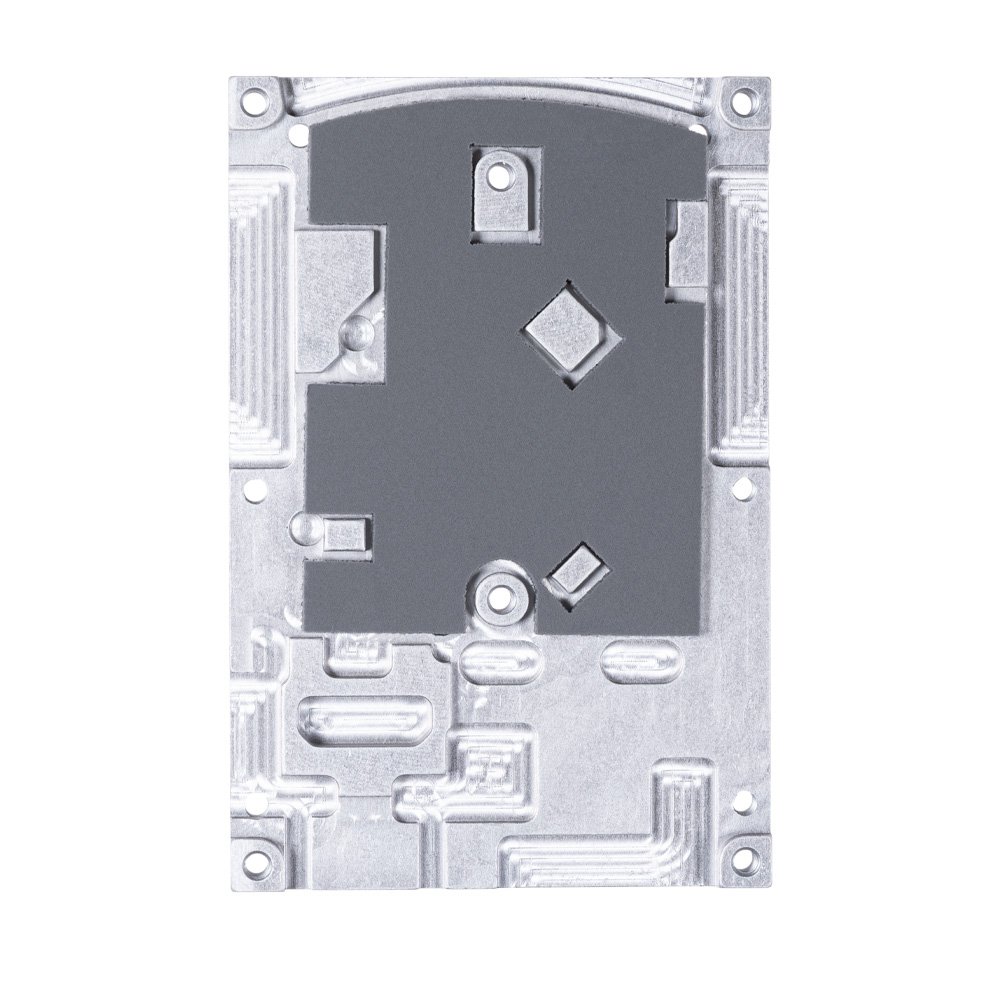

Keep your Red Pitaya board cool with this heatsink interface. Quality aluminum heatsink with adhesive thermal layer will protect your Red Pitaya from overheating.
- Incredibly effective cooling.
- Eliminates the risk of hardware failure due to overheating.
- Low profile, will fit into most OEM devices.
- Quiet, simple, passive cooling. No need for noisy fans.
- Perfectly sized for the Red Pitaya board.
- Comes with self adhesive thermal layer for easy application.
- Boosts long-term performance.
- Quick and simple installation.
Compatible with STEM 125-14bit.
Caution: Heatsink interface should be mounted on the intended heatsink first and only after that the Red Pitaya board should be installed.
